SRF3060CT, SRF3045CT Datasheet - JINAN JINGHENG

SRF3060CT, SRF3045CT, SCHOTTKY BARRIER RECTIFIER

R SEMICONDUCTOR SRF3045CT THRU SRF30200CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 45 to 200 Volts Forward Current - 30Amperes .

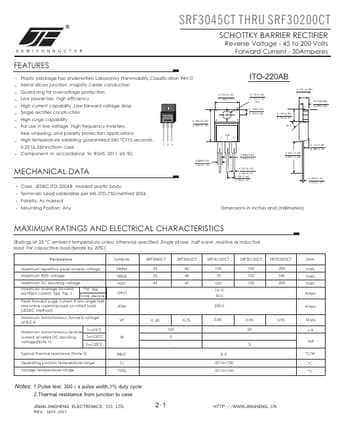

datasheet Preview Page 1 from Datasheet4u.com

SRF3045CT-JINANJINGHENG.pdf

SRF3060CT Datasheet Preview — This datasheet PDF includes multiple part numbers: SRF3060CT, SRF3045CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SRF3060CT, SRF3045CT

Manufacturer:

JINAN JINGHENG

File Size:

431.52 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SRF3060CT, SRF3045CT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop Single rectifier construction High surge cap

Applications

* High temperature soldering guaranteed:260 °C/10 seconds, 0.25"(6.35mm)from case 1 23 Component in accordance to RoHS 2011/65/EU 0.056(1.43) 0.043(1.10) MECHANICAL DATA Case: JEDEC ITO-220AB molded plastic body Terminals: Lead solderable per MIL-STD-750,method 2026 Polarity: As marked Mounting
