JZL-NB574C-A5 Datasheet - JIUZHOU OPTOELECTRONICS

JZL-NB574C-A5 ROUND 5MM LED LAMP

Forward Voltage Reverse Current Dominant λD Wavelength Luminous Intensity Half V-angle 2θ1/2V-V IF=20mA / / / deg 1. Vf maximum tolerance for each bin limit is +/-0.1V. 2. Iv maximum tolerance for each bin limit is +/-15%. 3. λD maximum tolerance for each bin limit is +/-1nm. Iv IF=20mA / 4000 Symb.

JZL-NB574C-A5 Features

* 5mm round lamp

* Lens color: WATER CLEAR

* Emitting color: Blue

* viewing angle: 15°

* Leads with stand-offs: No

* RoHS compliant Application: Indicator Decoration keyboard others Package Dimensions Notes: 1. All dimension are in millimeters and(Inch)tolerance is+0.25mm

JZL-NB574C-A5 Datasheet (312.38 KB)

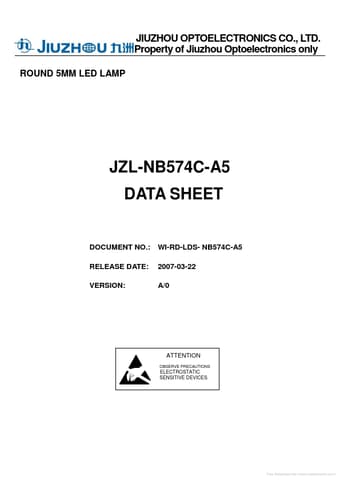

Preview of JZL-NB574C-A5 PDF

Datasheet Details

Part number:

JZL-NB574C-A5

Manufacturer:

JIUZHOU OPTOELECTRONICS

File Size:

312.38 KB

Description:

Round 5mm led lamp.
