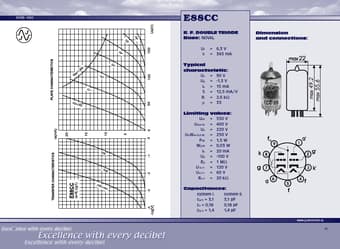

E88CC R. F. DOUBLE TRIODE
ECC88 - 6922 12 E88CC R. F. DOUBLE TRIODE Base: NOVAL Uf = 6,3 V If = 365 mA Typical characteristic: Ua = 90 V Ug = -1,3 V Ia = 15 mA S = 12,5 mA/V Ri = 2,6 kΩ µ = 33 Limiting values: Ua0 = 550 V Ua(la=0) = 400 V Ua = 220 V U Wa( ar<0,8 W) = 250 V PaR = 1,5 W Wg1R = 0,03 W Ik = 20 mA Ug = -100 V Rg = 1 MΩ U+k/f- = 120 V U-k/f+ = 60 V Rk/f = 20 kΩ Capacitances: system I. system II. cg/k = 3,1 3,1 pF ca = 0,18 0,18 pF cg/a = 1,4 1,4 pF Dimension and connections: www.jj-electronic.sk 13 .
