JM20339 Datasheet, Bridge, JMicron Technology

JM20339 Features

  • Bridge
  • Compliance with Gen1i, and Gen1m of Serial ATA II Electrical Specification 1.0
  • Support SATA spread-spectrum transmitter
  • Support SATA II Asynchronous Signal

PDF File Details

Part number:

JM20339

Manufacturer:

JMicron Technology

File Size:

126.66kb

Download:

📄 Datasheet

Description:

Hi speed usb to sata bridge. The JM20339 is single chip solution to bridge between USB 2.0 host and SATA device. The highly integrated USB 2.0 and SATA Phys techn

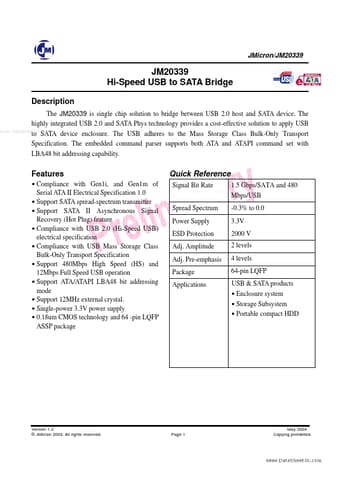

Datasheet Preview: JM20339 📥 Download PDF (126.66kb)
Page 2 of JM20339

JM20339 Application

  • Applications -0.3% to 0.0 3.3V 2000 V 2 levels 4 levels 64-pin LQFP USB & SATA products
  • Enclosure system
  • Storage Subsystem
