JMB322

RAID Port Multiplier

JMB322 General Description

JMB322 is a highly integrated single chip. It integrates three high-speed Serial I/O’s, three SATA upper layers, a high-performance RAID engine, a microprocessor, SRAM, PROM, a high efficient data bus and other control logic into the chip. With proper firmware programming, JMB322 can be used as SATA.

JMB322 Datasheet (1.55 MB)

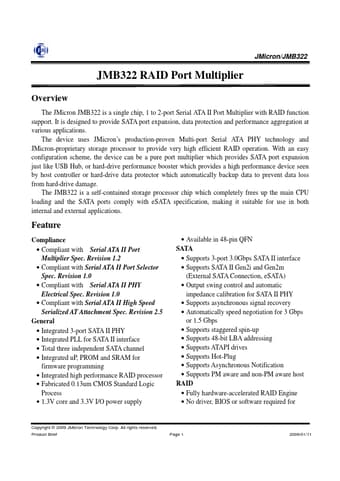

Preview of JMB322 PDF

Datasheet Details

Part number:

JMB322

Manufacturer:

JMicron

File Size:

1.55 MB

Description:

Raid port multiplier.
JMicron/JMB322 JMB322 RAID Port Multiplier Overview The JMicron JMB322 is a single chip, 1 to 2-port Serial ATA II Port Multiplier with RAID function.
