JMB363 PCI Express to SATA II and PATA Host Controller

PCI Express to SATA II and PATA Host Controller Document 1 JMB363 Data Sheet 2 JMB363 Design Specification 3 JMB363 Hardware Design Guide Contact Information Department Sales Tech. Support Email sales@jmicron.com fae@jmicron.com Product Brief Reversion 1.4 Copyright © 2006 JMicron Technology Corp.

JMB363 JMB363 PCI Express to SATA II and PATA Host Controller Overview JMB363 is a single chip, one-lane PCI Express to two-port Serial ATA II and one-port PATA Host Controller. The JMB363 is designed to provide two-port SATA II and one-port PATA connectivity. The JMB363 supports both AHCI and Legacy IDE controller to increase system feasibility, including Native Command Queuing (NCQ), Hot Plugging, ATAPI Device Supporting, Port Multiplier with Command-based Switching Supporting, Programmable O.

JMB363 Features

* PCI Express bus and Serial ATA II interface to express high performance storage devices. Feature Compliance

* Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0

* Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.

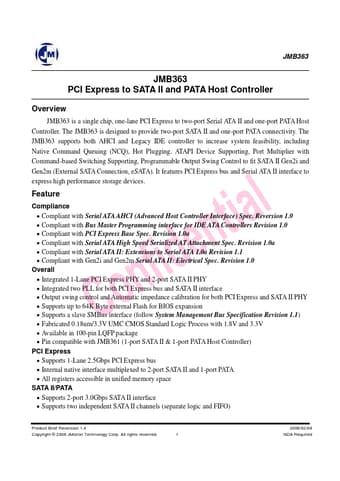

JMB363 Datasheet (152.55 KB)
