NJM78L00EA, NJM78L00UA, 3-TERMINAL POSITIVE VOLTAGE REGULATOR

NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR * GENERAL .
The NJM78L00 series of 3-Terminal Positive Voltage Regulators are constructed using the New JRC Planar epitaxial process.

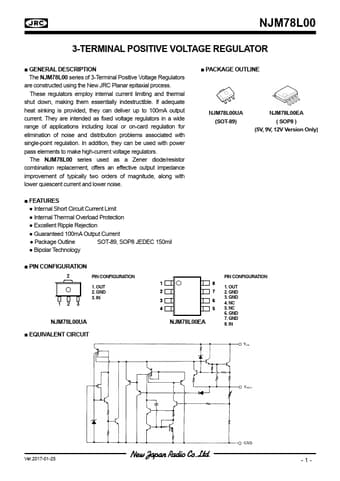

datasheet Preview Page 1 from Datasheet4u.com

NJM78L00UA-JRC.pdf

NJM78L00EA Datasheet Preview — This datasheet PDF includes multiple part numbers: NJM78L00EA, NJM78L00UA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NJM78L00EA, NJM78L00UA

Manufacturer:

JRC

File Size:

301.61 KB

Description:

3-TERMINAL POSITIVE VOLTAGE REGULATOR

Note:

This datasheet PDF includes multiple part numbers: NJM78L00EA, NJM78L00UA.
Please refer to the document for exact specifications by model.

Features

* Internal Short Circuit Current Limit
* Internal Thermal Overload Protection
* Excellent Ripple Rejection
* Guaranteed 100mA Output Current
* Package Outline SOT-89, SOP8 JEDEC 150mil
* Bipolar Technology
* PIN CONFIGURATION 2 PIN CONFIGURATION 12 3 1. OUT 2.

Applications

* including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The NJM78L00 series used as a Zener diode/resistor combination replacement
