NJU26040 - Digital Signal Processor

Product Overview

JRC

📥 Download Datasheet

NJU26040 Digital Signal Processor by JRC - Datasheet Preview — Datasheet preview – NJU26040

Datasheet Details

Part number	NJU26040
Manufacturer	JRC
File Size	299.90 KB
Description	Digital Signal Processor
Datasheet	NJU26040 Datasheet

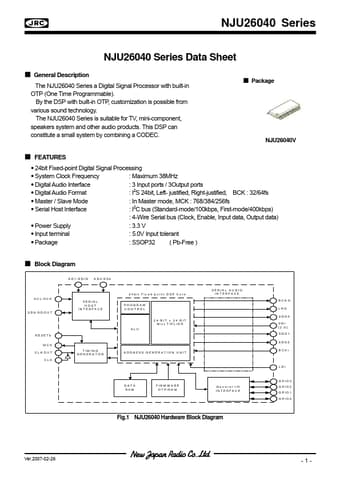

Additional preview pages of the NJU26040 datasheet.

Product details

Description

The NJU26040 Series a Digital Signal Processor with built-in OTP (One Time Programmable). Package NJU26040V

Features

S.
24bit Fixed-point Digital Signal Processing.
System Clock Frequency : Maximum 38MHz.
Digital Audio Interface.
Digital Audio Format : 3 Input ports / 3Output ports : I2S 24bit, Left- justified, Right-justified, BCK : 32/64fs.
Master / Slave Mode.
Serial Host Interface : In Master mode, MCK : 768/384/256fs : I2C bus (Standard-mode/100kbps, First-mode/400kbps) : 4-Wire Serial bus (Clock, Enable, Input data, Output data).
Pow.
