NJU7089 - HIGH-POWER & LOW-VOLTAGE AUDIO POWER AMPLIFIER

JRC

NJU7089 Datasheet Preview — Preview of NJU7089 PDF

Datasheet Details

Part number	NJU7089
Manufacturer	JRC ↗
File Size	797.08 KB
Description	HIGH-POWER & LOW-VOLTAGE AUDIO POWER AMPLIFIER
Datasheet	NJU7089-JRC.pdf

NJU7089 Product details

Description

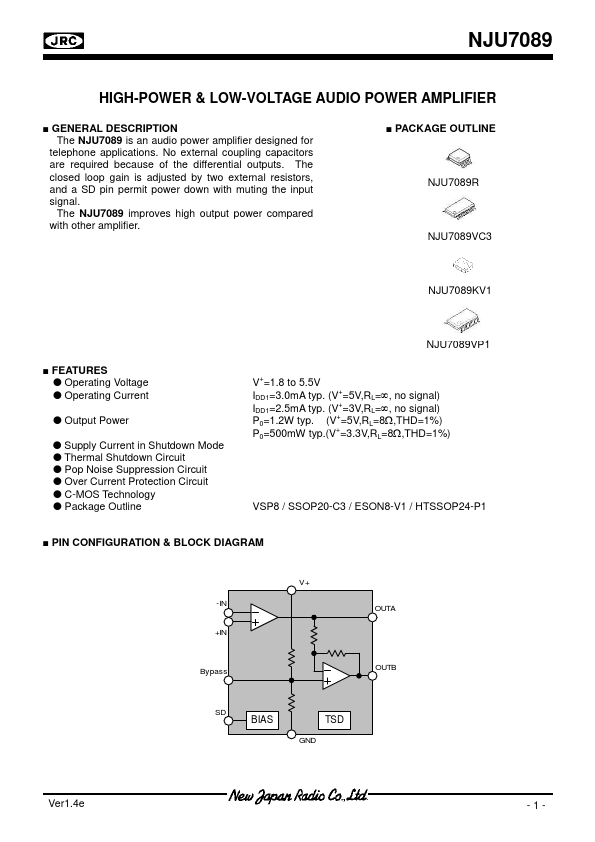

The NJU7089 is an audio power amplifier designed for telephone applications.No external coupling capacitors are required because of the differential outputs.The closed loop gain is adjusted by two external resistors, and a SD pin permit power down with muting the input signal.The NJU7089 improves high output power compared with other amplifier. PACKAGE OUTLINE NJU7089R NJU7089VC3 NJU7089KV1

Features

S.
Operating Voltage.
Operating Current.
Output Power.
Supply Current in Shutdown Mode.
Thermal Shutdown Circuit.
Pop Noise Suppression Circuit.
Over Current Protection Circuit.
C-MOS Technology.
Package Outline NJU7089VP1 V+=1.8 to 5.5V IDD1=3.0mA typ. (V+=5V,RL=, no signal) IDD1=2.5mA typ. (V+=3V,RL=, no signal) P0=1.2W typ. (V+=5V,RL=8,THD=1%) P0=500mW typ. (V+=3.3V,RL=8,THD=1%) VSP8 / SSOP20-C3 / ESON8-V1 / HTSSOP24-P1.

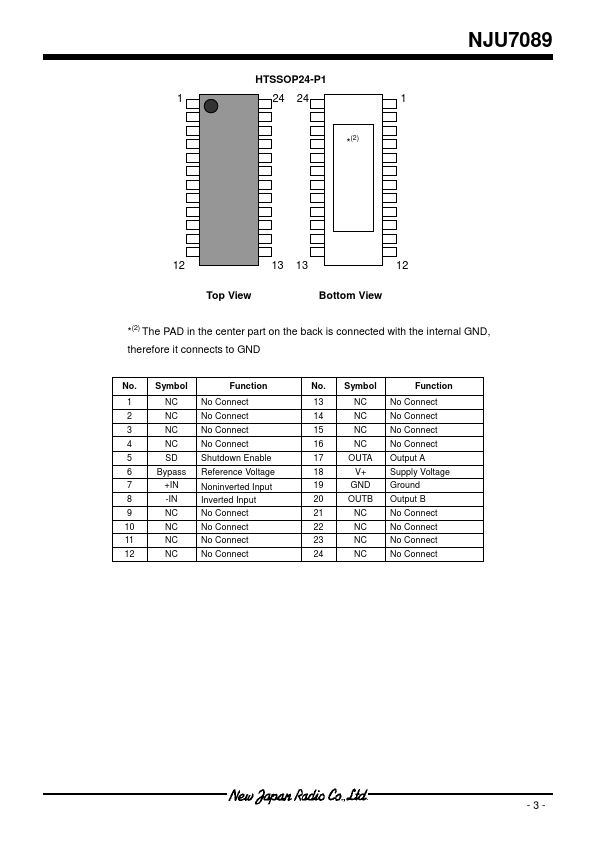

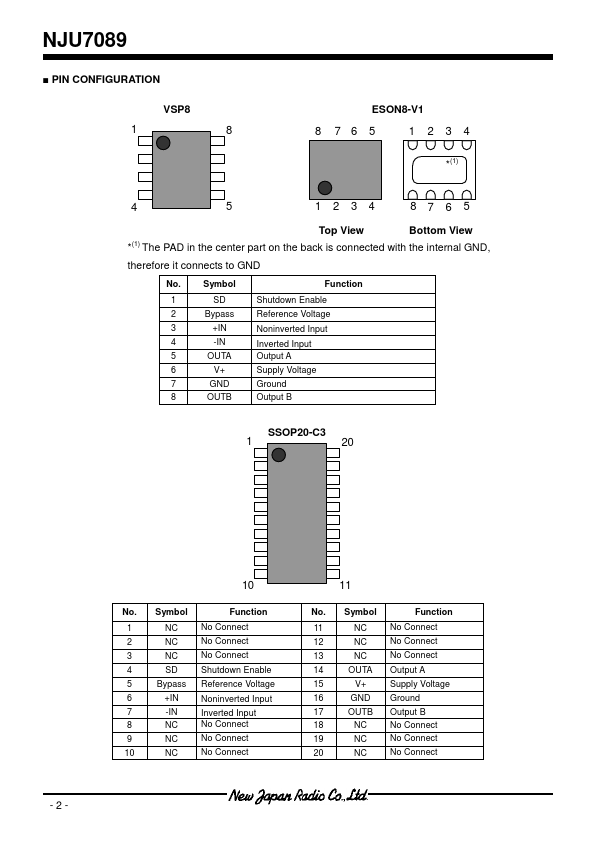

PIN.
