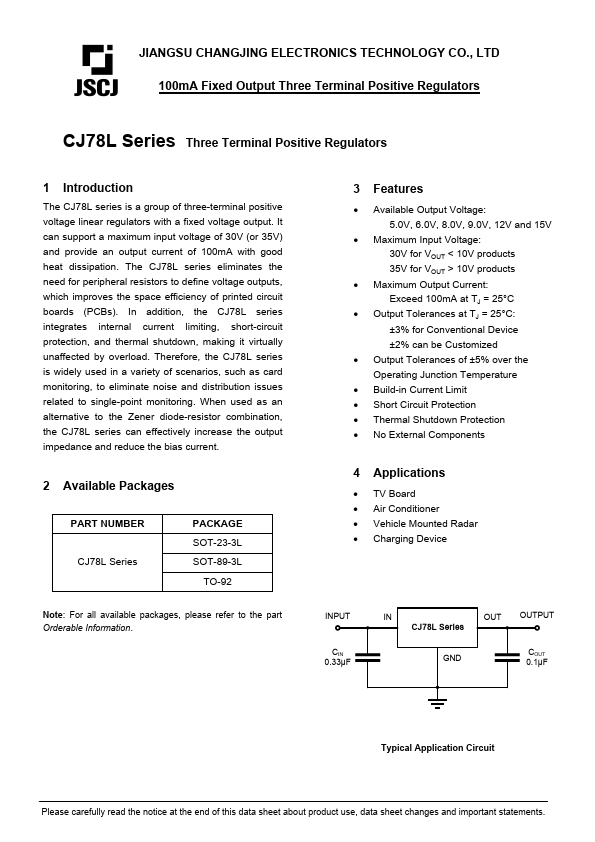

CJ78L12, CJ78L05 Three Terminal Positive Regulators

Description

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD 100mA Fixed Output Three Terminal Positive Regulators CJ78L Series Three Terminal Positive Regulato.

📥 Download Datasheet

CJ78L12 Datasheet Preview — This datasheet PDF includes multiple part numbers: CJ78L12, CJ78L05. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CJ78L12, CJ78L05
Manufacturer: JSCJ
File Size: 1.55 MB
Datasheet: CJ78L05-JSCJ.pdf
Description: Three Terminal Positive Regulators
Note: This datasheet PDF includes multiple part numbers: CJ78L12, CJ78L05.
Please refer to the document for exact specifications by model.

Features

* Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V, 12V and 15V
* Maximum Input Voltage: 30V for VOUT < 10V products 35V for VOUT > 10V products
* Maximum Output Current: Exceed 100mA at TJ = 25°C
* Output Tolerances at TJ = 25°C: ±3% for Conventional Device ±2% can b

Applications

* TV Board
* Air Conditioner
* Vehicle Mounted Radar
* Charging Device INPUT CIN 0.33µF IN OUT OUTPUT CJ78L Series GND COUT 0.1µF Typical Application Circuit Please carefully read the notice at the end of this data sheet about product use, data sheet changes an
