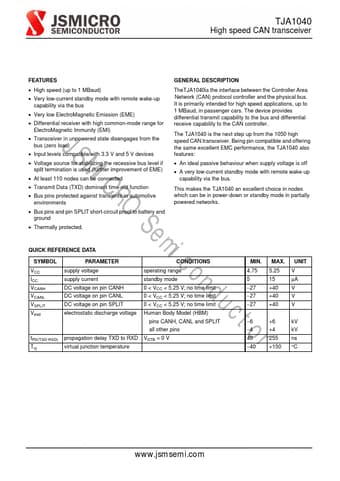

    TJA1040 High speed CAN transceiver FEATURES GENERAL DESCRIPTION • High speed (up to 1 MBaud) TheTJA1040is the interface between the Controller Area • Very low-current standby mode with remote wake-up capability via the bus • Very low ElectroMagnetic Emission (EME) • Differential receiver with high common-mode range for Network (CAN) protocol controller and the physical bus. It is primarily intended for high speed applications, up to 1 MBaud, in passenger cars. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. ElectroMagnetic Immunity (EMI) • Transceiver in unpowered state disengages from the J bus (zero load) S • Input levels compatible with 3.
