RS3MC, RS3AC Fast Recovery Surface Mount Rectifiers

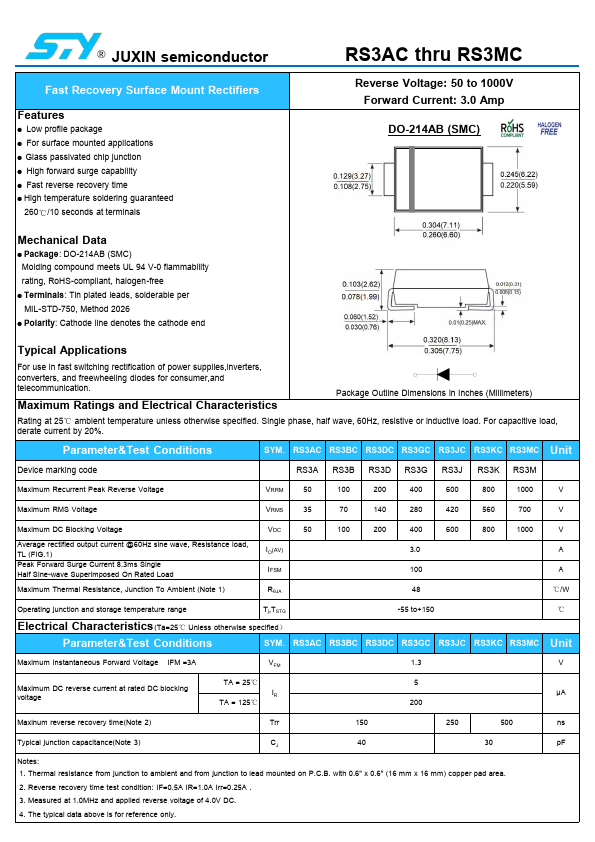

📥 Download Datasheet Datasheet Preview Page 1

Description

JUXIN semiconductor Fast Recovery Surface Mount Rectifiers .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3MC, RS3AC. Please refer to the document for exact specifications by model.

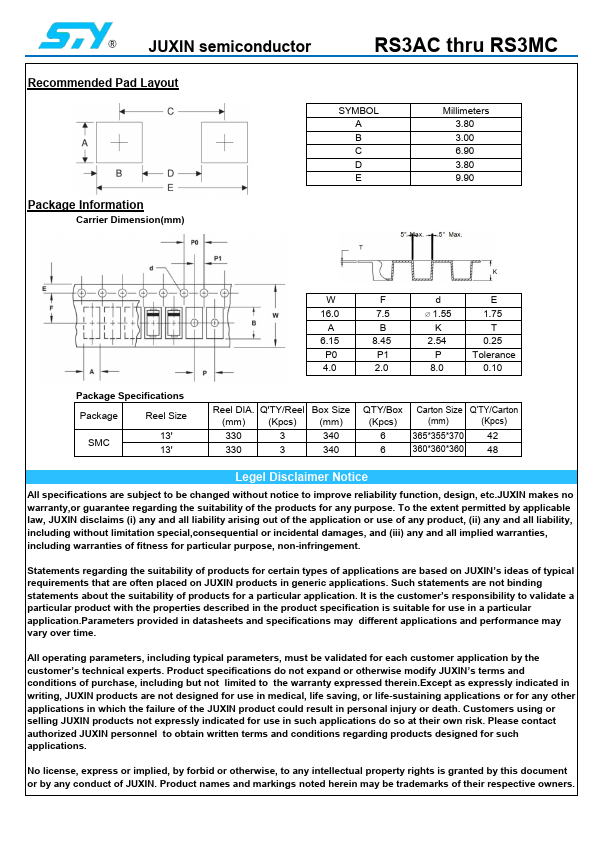

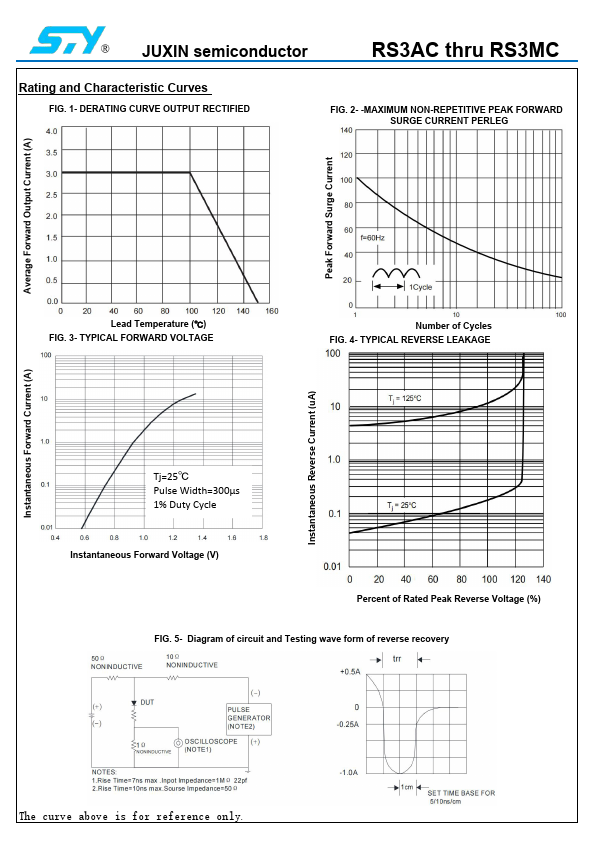

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS3MC, RS3AC
Manufacturer
JUXIN
File Size
568.18 KB
Datasheet
RS3AC-JUXIN.pdf
Description
Fast Recovery Surface Mount Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS3MC, RS3AC.
Please refer to the document for exact specifications by model.

Features

* Low profile package

Applications

* Glass passivated chip junction
* High forward surge capability
* Fast reverse recovery time
* High temperature soldering guaranteed 260℃/10 seconds at terminals RS3AC thru RS3MC Reverse Voltage: 50 to 1000V Forward Current: 3.0 Amp DO-214AB (SMC) Mechanical Data
* Package: DO
