DG36003G, DG36001G LAN TRANSFORMER

Description

LAN TRANSFORMER DG360XX G-Series 100/1000 Base-T Dual Ports Magnetic Modules DIP .

📥 Download Datasheet

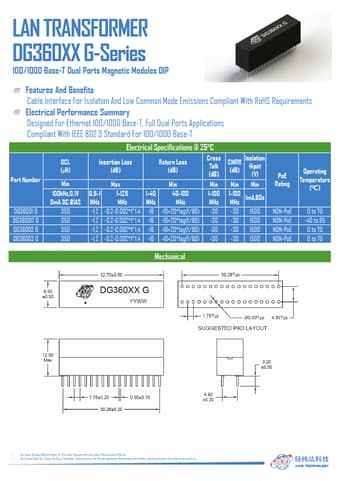

DG36003G Datasheet Preview — This datasheet PDF includes multiple part numbers: DG36003G, DG36001G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DG36003G, DG36001G
Manufacturer: JWD
File Size: 749.26 KB
Datasheet: DG36001G-JWD.pdf
Description: LAN TRANSFORMER
Note: This datasheet PDF includes multiple part numbers: DG36003G, DG36001G.
Please refer to the document for exact specifications by model.

Applications

* Compliant With IEEE 802.3 Standard For 100/1000 Base-T Part Number DG36001 G DG36001T G DG36002 G DG36003 G OCL (µH) Min 100kHz,0.1V 8mA DC BIAS 350 350 350 350 Electrical Specifications @ 25°C Insertion Loss (dB) Return Loss (dB) Cross Talk (dB) Max Min Min 0.5-1 1-125 1-40 40-100 1-100
