A09T - SOT-23 Plastic Encapsulate MOSFETS

📥 Download Datasheet

Datasheet preview – A09T

Datasheet Details

Part number A09T
Manufacturer JXND
File Size 387.41 KB
Description SOT-23 Plastic Encapsulate MOSFETS
Datasheet download datasheet A09T Datasheet
Additional preview pages of the A09T datasheet.

📁 Similar Datasheet

  • A09T - 30V N-CHANNEL MOSFET (OSEN)
  • A09T - SMD PLASTIC-ENCAPSULATE MOSFET (NextGen)
  • A09T - 20V N-Channel Enhancement Mode MOSFET (DCY)
  • A09T - N-Channel SOT-23 Plastic-Encapsulate MOSFET (SLS SEMICONDUCTOR)
  • A09T - MOSFET (Kingtronics)
  • A09T - N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)
  • A0903S-1W - DC-DC Power Module (K-CUT)
  • A0905S-1W - DC-DC Power Module (K-CUT)
  • A0909S-1W - DC-DC Power Module (K-CUT)
  • A090VW01-V0 - TFT LCD (AUO)
Other Datasheets by JXND

    Full PDF Text Transcription

    Click to expand full text

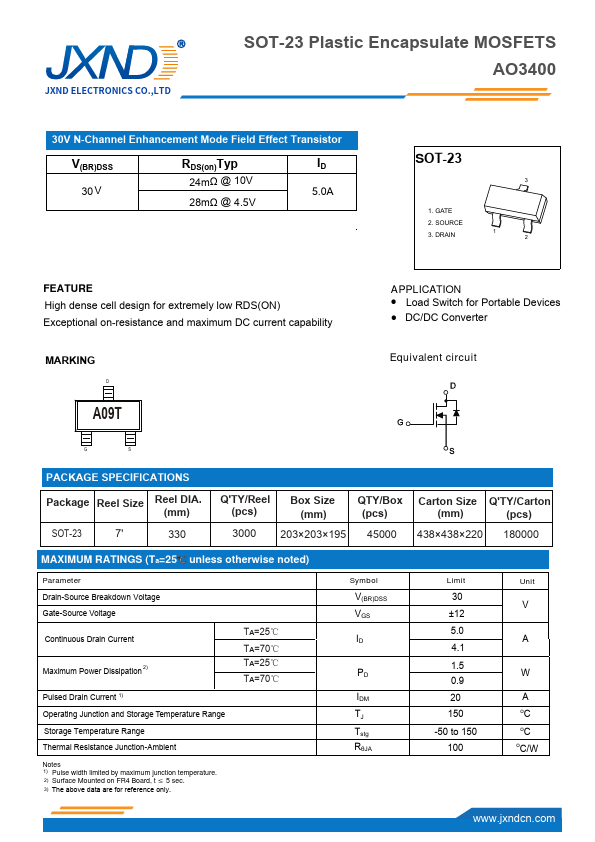

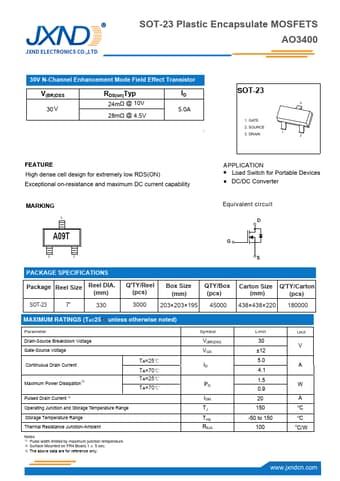

    JXND ELECTRONICS CO.,LTD SOT-23 Plastic Encapsulate MOSFETS AO3400 30V N-Channel Enhancement Mode Field Effect Transistor V(BR)DSS 30 V RDS(on)Typ 24mΩ @ 10V 28mΩ @ 4.5V ID 5.0A SOT-23 3 1. GATE 2. SOURCE 3. DRAIN 1 2 FEATURE High dense cell design for extremely low RDS(ON) Exceptional on-resistance and maximum DC current capability APPLICATION z Load Switch for Portable Devices z DC/DC Converter MARKING D A09T Equivalent circuit G S PACKAGE SPECIFICATIONS Package Reel Size Reel DIA.
