SB2045, SB2020 Datasheet - JXND

SB2045, SB2020, Schottky Barrier Rectifiers

JXND ELECTRONICS CO.,LTD Schottky Barrier Rectifiers SB2020 thru SB20100 Reverse Voltage 35 to 100V Forward Current 20A .

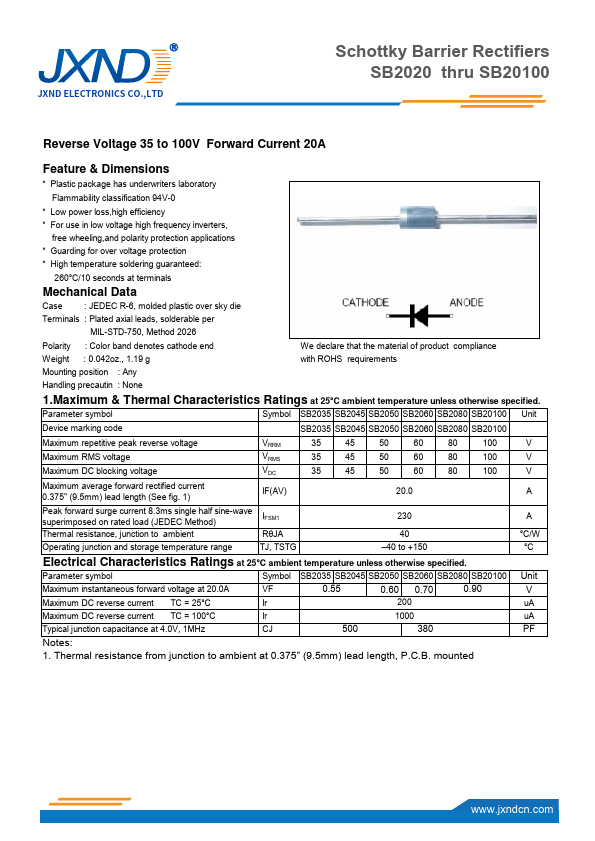

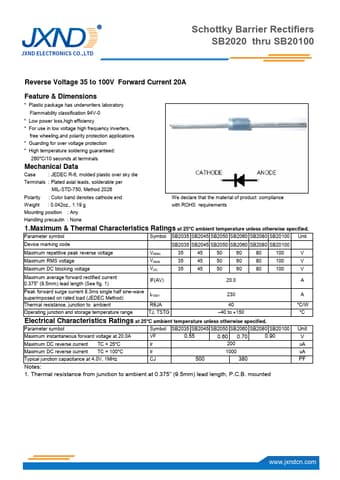

datasheet Preview Page 1 from Datasheet4u.com

SB2020-JXND.pdf

SB2045 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB2045, SB2020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB2045, SB2020

Manufacturer:

JXND

File Size:

167.50 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SB2045, SB2020.
Please refer to the document for exact specifications by model.

Applications

* Guarding for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case : JEDEC R-6, molded plastic over sky die Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity : Color band denotes cathode end W
