UTB1S-10 - 1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

UTB1S-10 Datasheet Preview — Preview of UTB1S-10 PDF

Datasheet Details

Part number	UTB1S-10
Manufacturer	JXND
File Size	153.51 KB
Description	1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	UTB1S-10-JXND.pdf

UTB1S-10 Product details

Description

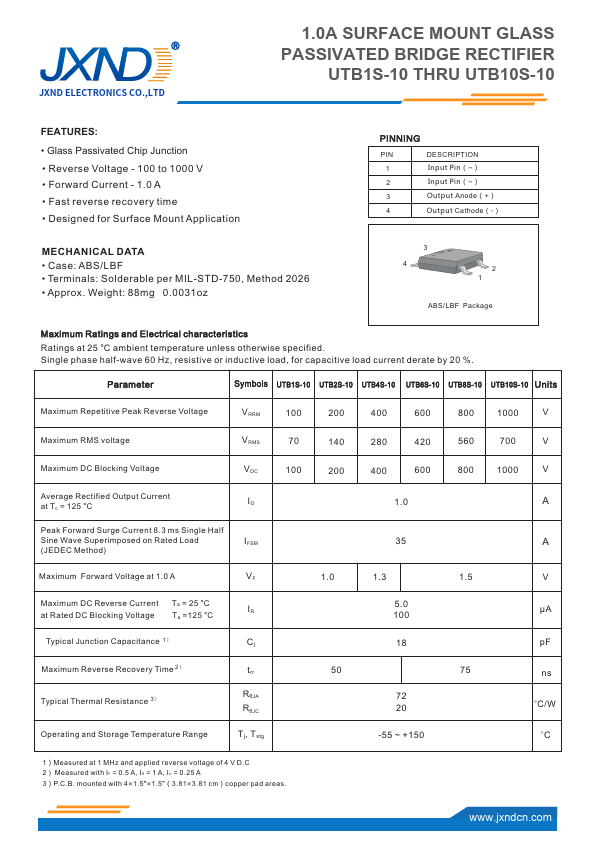

1 Input Pin（~） 2 Input Pin（~） 3 Output Anode（+） 4 Output Cathode（-） MECHANICAL DATA Case: ABS/LBF Terminals: Solderable per MIL-STD-750, Method 2026 Approx.

Features

Glass Passivated Chip Junction.
Reverse Voltage - 100 to 1000 V.
Forward Current - 1.0 A.
Fast reverse recovery time.
Designed for Surface Mount.
