JR25N65 - Power MOSFET

📥 Download Datasheet

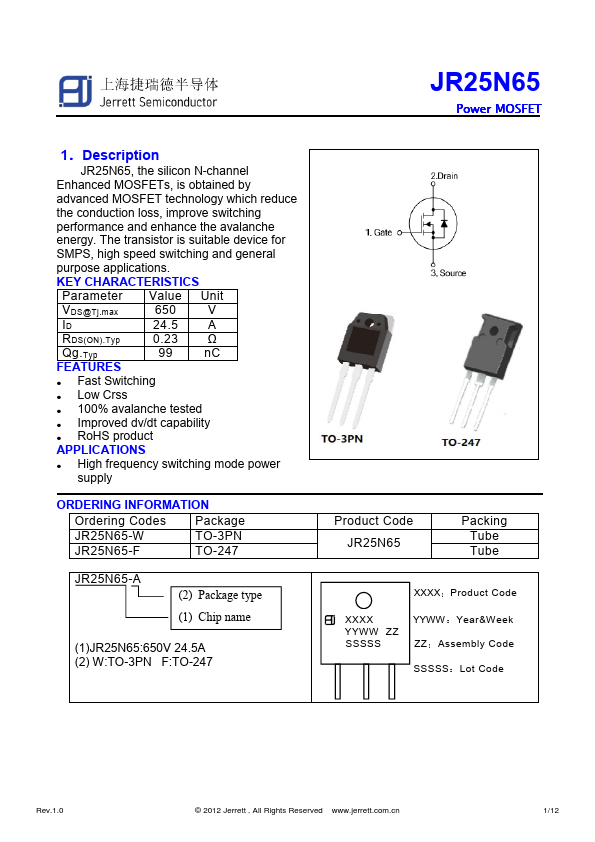

Preview of JR25N65 PDF

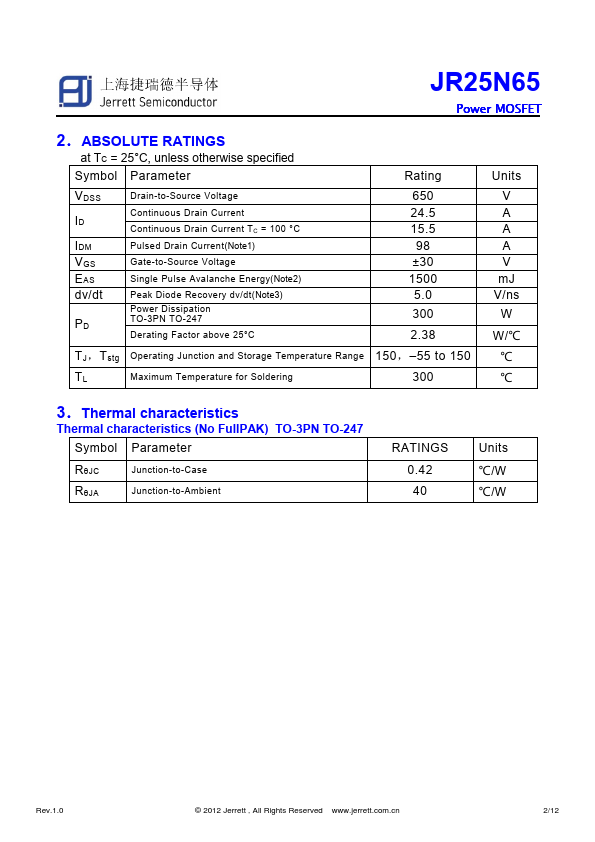

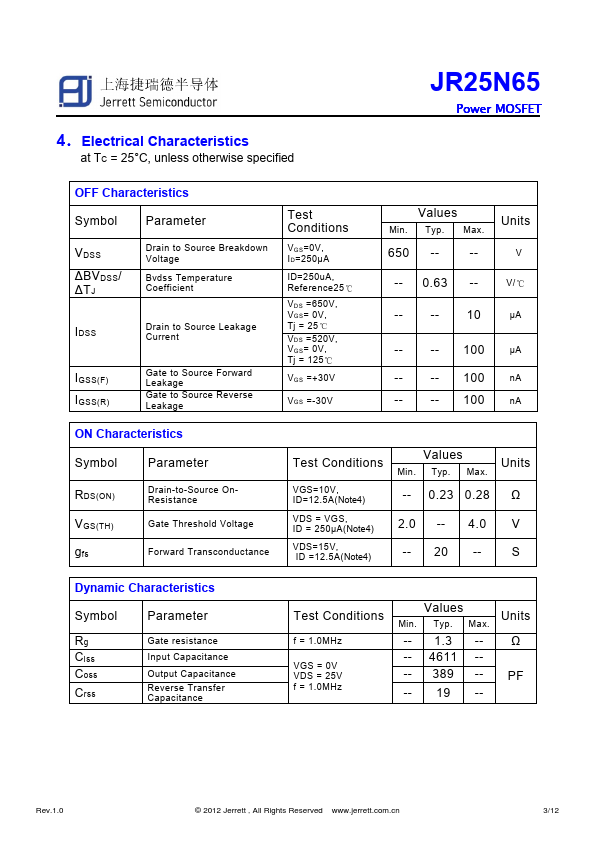

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number JR25N65
Manufacturer Jerrett
File Size 464.65 KB
Description Power MOSFET
Datasheet download datasheet JR25N65-Jerrett.pdf

JR25N65 Product details

Description

JR25N65, the silicon N-channel Enhanced MOSFETs, is obtained by advanced MOSFET technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor is suitable device for SMPS, high speed switching and general purpose applications.KEY CHARACTERISTICS Parameter Value Unit VDS@Tj.max 650 V ID 24.5 A RDS(ON).Typ 0.23 Ω Qg.Typ 99 nC

Features
