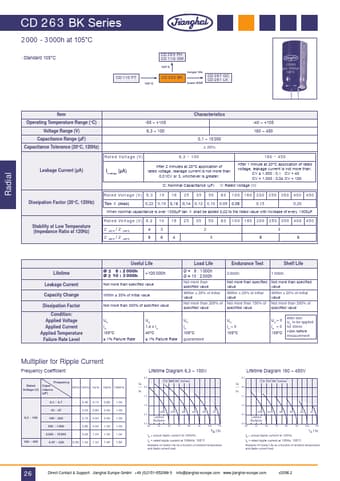

CD 263 BK Series
2 000 - 3 000h at 105°C
· Standard 105°C
CD 269 PH CD 11G GW
125°C longer life
CD 110 PT
105°C
CD 263 BK
lower ESR
CD 287 GC CD 261 LK
Item Operating Temperature Range (°C) Voltage Range (V) Capacitance Range (µF) Capacitance Tolerance (20°C, 120Hz)
Rated Voltage (V)
Characteristics -55 ~ +105 6,3 ~ 100 0,1 ~ 15 000 ± 20%
6,3 ~ 100
After 2 minutes at 20°C application of rated voltage, leakage current is not more than 0,01CV or 3, whichever is greater. C: Nominal Capacitance (µF)
-40 ~ +105 160 ~ 450
160 ~ 450
After 1 minute at 20°C application of rated voltage, leakage current is not more than: CV ≤ 1.000 : 0,1 CV + 40 CV > 1.
