5W4VC-D15U Datasheet - Jiangmen Xinqiao Optoelectronic

5W4VC-D15U LED

www.DataSheet4U.com ： 5W4VC-D15U ：mm Parameter Forward Voltage Recommend Forward Current Reverse Current Luminous Intensity Peak Wavelength Peak Forward Current Power dissipation View Angle Symbol VF IF(Rec) IR IV λp If(Peak) Pd 2θ1/2 MIN. 2.8 TYP. 3.2 20 MAX. 3.6 UNIT V mA TEST CONDITION IF=20mA 10 11000 B/Y 100 100 10 15 20 μA mcd nm mA mW deg VR=5V IF=20mA IF=20mA IF=20mA ABSOLUTE MAXIMUM RATINGS: (Ta = 25℃) OPERATING TEMPERATURE: －40℃ TO ＋80℃ LEAD SOLDERING: 2.

5W4VC-D15U_JiangmenXinqiaoOptoelectronic.pdf

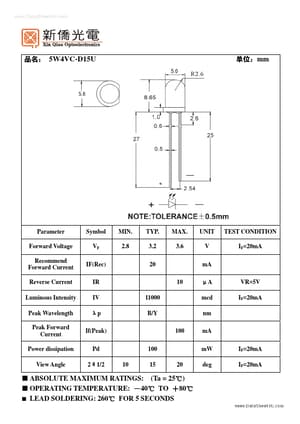

Preview of 5W4VC-D15U PDF

Datasheet Details

Part number:

5W4VC-D15U

Manufacturer:

Jiangmen Xinqiao Optoelectronic

File Size:

127.63 KB

Description:

Led.
