CJ1117 Datasheet, Regulator, Jiangsu Changjiang Electronics

CJ1117 Features

  • Regulator
  • Low Dropout Voltage: 1.15V at 1A Output Current
  • Trimmed Current Limit
  • On-Chip Thermal Shutdown
  • Three-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5

PDF File Details

Part number:

CJ1117

Manufacturer:

Jiangsu Changjiang Electronics

File Size:

254.93kb

Download:

📄 Datasheet

Description:

1a low dropout linear regulator. The CJ1117 is a series of low dropout three-terminal regulators with a dropout of 1.15V at 1A output current. The CJ1117 series provi

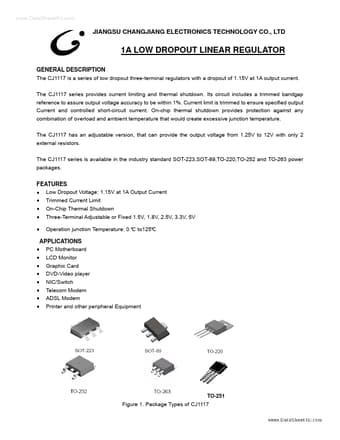

Datasheet Preview: CJ1117 📥 Download PDF (254.93kb)
Page 2 of CJ1117 Page 3 of CJ1117

CJ1117 Application

  • Applications
  • PC Motherboard
  • LCD Monitor
  • Graphic Card
  • DVD-Video player
  • NIC/Switch
  • Telecom
