MBR4060ABR, MBR4060, SCHOTTKY BARRIER DIODE

R SCHOTTKY BARRIER DIODE MBR4060 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 40（2×20）A 60 V 150 ℃ 0.65V （@Tj=125℃） * * AP.
of Changes (Rev):201408A 8/8.

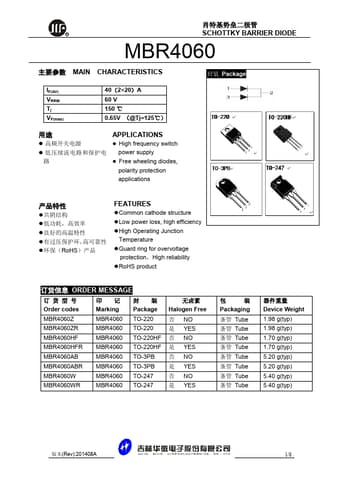

datasheet Preview Page 1 from Datasheet4u.com

MBR4060-JilinSino.pdf

MBR4060ABR Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR4060ABR, MBR4060. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR4060ABR, MBR4060

Manufacturer:

Jilin Sino

File Size:

358.02 KB

Description:

SCHOTTKY BARRIER DIODE

Note:

This datasheet PDF includes multiple part numbers: MBR4060ABR, MBR4060.
Please refer to the document for exact specifications by model.

Features

* Common cathode structure
* Low power loss, high efficiency
* High Operating Junction Temperature
* Guard ring for overvoltage protection，High reliability
* RoHS product ORDER MESSAGE Order codes Marking Package MBR4060Z MBR4060 TO-220 MBR4060ZR MBR4060 TO-220 MBR4060HF

Applications

* High frequency switch power supply
* Free wheeling diodes, polarity protection applications
* ，
* ，
