1SMAF4739A

Silicon Planar Zener Diodes

1SMAF4739A Features

* Total power dissipation: Max. 1 W.

* Wide zener reverse voltage range 3.3V to 330V.

* Small plastic package suitable for surface mounted design. PINNING PIN DESCRIPTION 1 Cathode 2 Anode MECHANICAL DATA

* Case: SMAF

* Terminals: Solderable per MIL-STD-750,

1SMAF4739A General Description

1 Cathode 2 Anode MECHANICAL DATA

* Case: SMAF

* Terminals: Solderable per MIL-STD-750, Method 2026

* Approx. Weight: 27mg 0.00095oz 12 Simplified outline SMAF and symbol Absolute Maximum Ratings And Characteristics （Ta = 25 °C） Parameter Power Dissipation at Tc=75°C Forw.

1SMAF4739A Datasheet (71.81 KB)

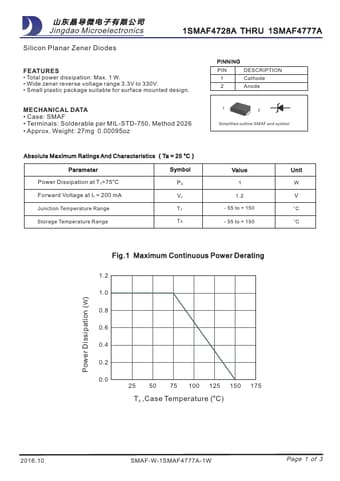

Preview of 1SMAF4739A PDF

Datasheet Details

Part number:

1SMAF4739A

Manufacturer:

Jingdao Microelectronics

File Size:

71.81 KB

Description:

Silicon planar zener diodes.
