ES1AW

Surface Mount Superfast Recovery Rectifier

ES1AW Features

* Easy pick and place

* For surface mounted applications

* Low profile package

* Built-in strain relief

* Superfast recovery times for high efficiency PINNING PIN DESCRIPTION 1 Cathode 2 Anode 12 Simplified outline SOD-123FL and symbol MECHANICAL DATA

ES1AW General Description

1 Cathode 2 Anode 12 Simplified outline SOD-123FL and symbol MECHANICAL DATA

* Case: SOD-123FL

* Terminals: Solderable per MIL-STD-750, Method 2026

* Approx. Weight:15mg 0.00053oz Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless other.

ES1AW Datasheet (85.78 KB)

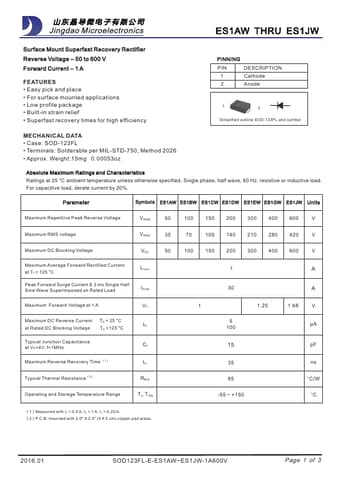

Preview of ES1AW PDF

Datasheet Details

Part number:

ES1AW

Manufacturer:

Jingdao Microelectronics

File Size:

85.78 KB

Description:

Surface mount superfast recovery rectifier.
Jingdao Microelectronics ES1AW THRU ES1JW Surface Mount Superfast Recovery Rectifier Reverse Voltage

* 50 to 600 V Forward Current

.
