MM3Z10W, MM3Z2V0W Silicon Planar Zener Diodes

Description

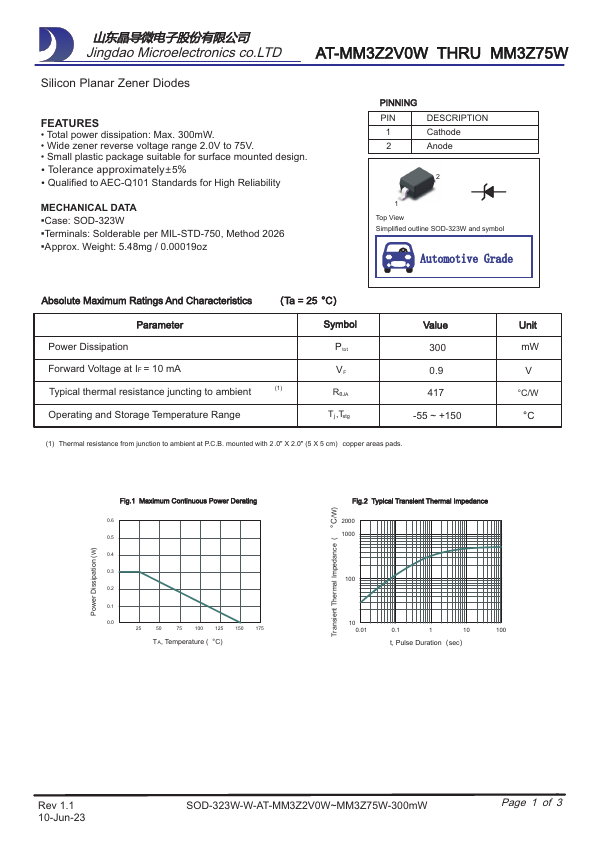

Jingdao Microelectronics co.LTD AT-MM3Z2V0W THRU MM3Z75W Silicon Planar Zener Diodes .
1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-323W and symbol Value Unit Absolute Maximum Ratings And Characteristics Parameter Power.

📥 Download Datasheet

MM3Z10W Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z10W, MM3Z2V0W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MM3Z10W, MM3Z2V0W
Manufacturer: Jingdao Microelectronics
File Size: 96.46 KB
Datasheet: MM3Z2V0W-JingdaoMicroelectronics.pdf
Description: Silicon Planar Zener Diodes
Note: This datasheet PDF includes multiple part numbers: MM3Z10W, MM3Z2V0W.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: Max. 300mW.
* Wide zener reverse voltage range 2.0V to 75V.
* Small plastic package suitable for surface mounted design.
* Tolerance approximately±5%
* Qualified to AEC-Q101 Standards for High Reliability MECHANICAL DATA ▪Case: SOD-3
