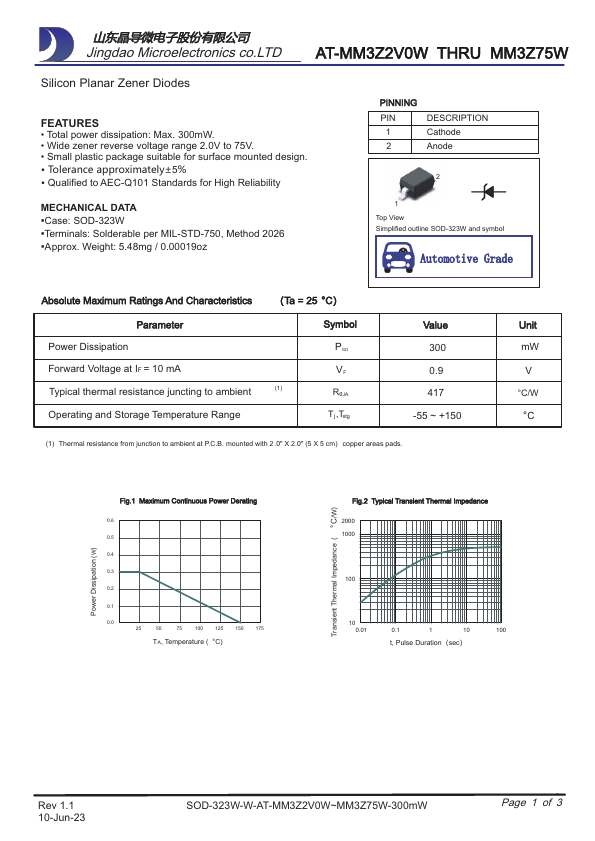

MM3Z11W, MM3Z2V0W Silicon Planar Zener Diodes

Jingdao Microelectronics co.LTD AT-MM3Z2V0W THRU MM3Z75W Silicon Planar Zener Diodes .
1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-323W and symbol Value Unit Absolute Maximum Ratings And Characteristics Parameter Power.

MM3Z2V0W-JingdaoMicroelectronics.pdf

MM3Z11W Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z11W, MM3Z2V0W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM3Z11W, MM3Z2V0W

Manufacturer:

Jingdao Microelectronics

File Size:

96.46 KB

Description:

Silicon Planar Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: MM3Z11W, MM3Z2V0W.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: Max. 300mW.
* Wide zener reverse voltage range 2.0V to 75V.
* Small plastic package suitable for surface mounted design.
* Tolerance approximately±5%
* Qualified to AEC-Q101 Standards for High Reliability MECHANICAL DATA ▪Case: SOD-3
