P4SMAFJ43

Surface mount transient voltage suppressor power 400 watts

P4SMAFJ43 Features

* For surface mounted applications in order to optimize board space.

* Low profile package

* Glass passivated junction

* Low inductance

* Plastic package has Underwriters Laboratory Flammability MECHANICAL DATA

* Case: SMAF

* Terminals: Soldera

P4SMAFJ43 General Description

1 Cathode 2 Anode 12 Unipolar Bipolar Simplified outline SMAF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Symbol Peak Pulse Power Dissipation on TA=25°C (Note 1,2,4, Fig1) Peak Forward Surge Current (Note 3.

P4SMAFJ43 Datasheet (95.61 KB)

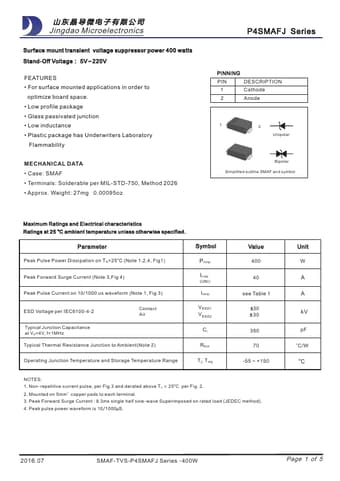

Preview of P4SMAFJ43 PDF

Datasheet Details

Part number:

P4SMAFJ43

Manufacturer:

Jingdao Microelectronics

File Size:

95.61 KB

Description:

Surface mount transient voltage suppressor power 400 watts.
