P6SMBF6.8

Surface mount transient voltage suppressor power 600 watts

P6SMBF6.8 Features

* For surface mounted applications in order to optimize board space.

* Low profile package

* Glass passivated junction

* Low inductance

* Plastic package has Underwriters Laboratory Flammability MECHANICAL DATA

* Case: SMBF

* Terminals: Soldera

P6SMBF6.8 General Description

1 Cathode 2 Anode 12 Unipolar Bipolar Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Peak Pulse Power Dissipation on 10/1000 s waveform (Note1,Note2, Fig.1). Peak Forward Surge Current,8..

P6SMBF6.8 Datasheet (98.07 KB)

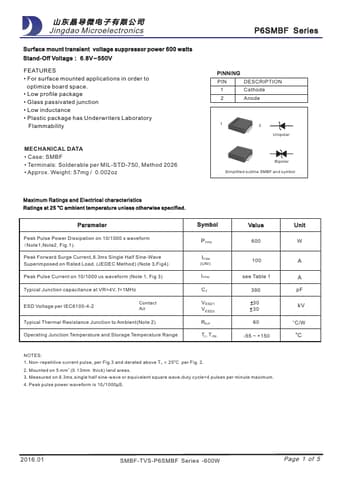

Preview of P6SMBF6.8 PDF

Datasheet Details

Part number:

P6SMBF6.8

Manufacturer:

Jingdao Microelectronics

File Size:

98.07 KB

Description:

Surface mount transient voltage suppressor power 600 watts.
