RS2MF Surface Mount Fast Recovery Rectifiers

1 Cathode 2 Anode 12 Top View Marking Code: RS2A-RS2M Simplified outline SMAF and symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by .

RS2MF Features

* For surface mounted applications

* Low profile package

* Glass Passivated Chip Junction

* Easy to pick and place

* Fast reverse recovery time

* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA

* Case: SMAF

* Term

RS2AF-JingdaoMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: RS2MF, RS2AF. Please refer to the document for exact specifications by model.

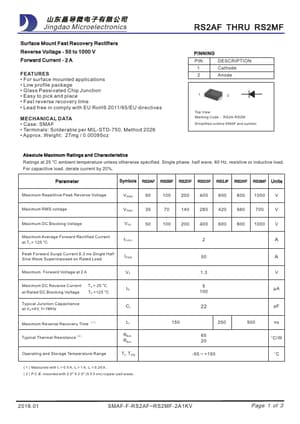

RS2MF Datasheet Preview Page 2 RS2MF Datasheet Preview Page 3

Datasheet Details

Part number:

RS2MF, RS2AF

Manufacturer:

Jingdao Microelectronics

File Size:

75.60 KB

Description:

Surface mount fast recovery rectifiers.

Note:

This datasheet PDF includes multiple part numbers: RS2MF, RS2AF.
Please refer to the document for exact specifications by model.
