S2ABF - Surface Mount General Purpose Silicon Rectifiers

S2ABF Datasheet Preview — Preview of S2ABF PDF

Datasheet Details

Part number	S2ABF
Manufacturer	Jingdao Microelectronics
File Size	72.60 KB
Description	Surface Mount General Purpose Silicon Rectifiers
Datasheet	S2ABF-JingdaoMicroelectronics.pdf

S2ABF Product details

Description

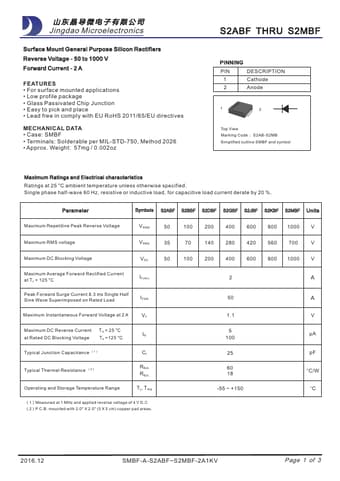

1 Cathode 2 Anode 12 Top View Marking Code： S2AB-S2MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols S2ABF S2BBF S2DBF S2GBF S2JBF S2KBF S2MBF Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 7

Features

For surface mounted.
