S2BBF Surface Mount General Purpose Silicon Rectifiers

S2BBF Description

Jingdao Microelectronics Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 2 A .
1 Cathode 2 Anode 12 Top View Marking Code： S2AB-S2MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25.

S2BBF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SMBF
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 57mg /

📥 Download Datasheet

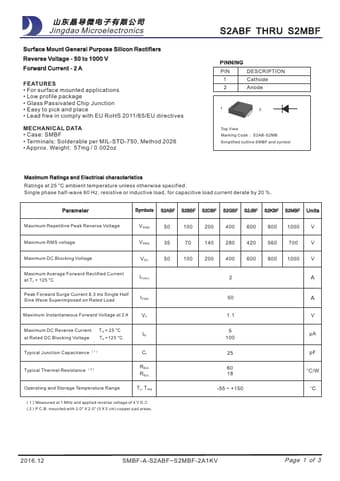

S2BBF Datasheet Preview — Preview of S2BBF PDF

Datasheet Details

Part number: S2BBF
Manufacturer: Jingdao Microelectronics
File Size: 65.80 KB
Datasheet: S2BBF-JingdaoMicroelectronics.pdf
Description: Surface Mount General Purpose Silicon Rectifiers
