20S45 Datasheet - Jingdao

20S45 Schottky barrier diode

Shenzhen Jingdao Electronic Co.,Ltd. TEL：0755-29799516 FAX：0755-29799515 Http://www.jdsemi.cn 20S45 ： DC-DC ： ， A1. K. A2. ：( Ta=25 ℃ ) VRRM IF(AV) IFSM Pc Tj Tstg 45 10×2 150 80 125 -65 ～ 150 V A A W ℃ ℃ ： ( Ta=25 ℃ ) VRRM VF IR Cd IR=1mA IF=10A IF=20A VR=43V,T=25 ℃ f=1MHz:VR=4V 45 0.58 0.85 100 500 V V µA pF Jingdao Electronic Corporation V01 1/3 Shenzhen Jingdao Electronic Co.,Ltd. TEL：0755-29799516 FAX：0755-29799515 Http://w.

20S45-Jingdao.pdf

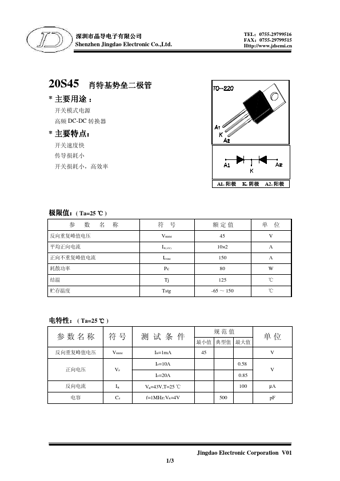

Preview of 20S45 PDF
20S45 Datasheet Preview Page 2 20S45 Datasheet Preview Page 3

Datasheet Details

Part number:

20S45

Manufacturer:

Jingdao

File Size:

92.33 KB

Description:

Schottky barrier diode.
