SSL36B - Surface Mount Schottky Barrier Rectifier

Jingdao

📥 Download Datasheet

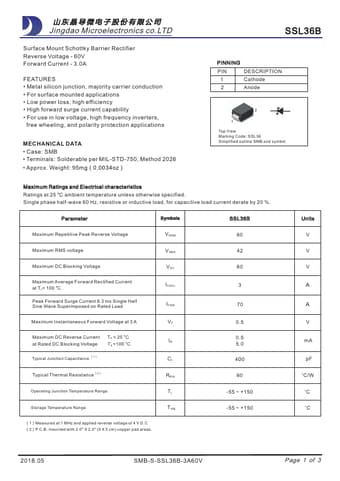

SSL36B Datasheet Preview — Preview of SSL36B PDF

Datasheet Details

Part number	SSL36B
Manufacturer	Jingdao
File Size	89.03 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	SSL36B-Jingdao.pdf

SSL36B Product details

Description

1 Cathode 2 Anode 2 1 Top View Marking Code: SSL36 Simplified outline SMB and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols SSL36B Maximum Repetitive Peak Reverse Voltage VRRM 60 Maximum RMS voltag

Features

Metal silicon junction, majority carrier conduction.
For surface mounted.
