UMSB30B 3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Jingdao

UMSB30B Description

UMSB30B THRU UMSB30M 3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER .
1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） MECHANICAL DATA. Case: UMSB. Terminals: Solderable per MIL-STD-.

UMSB30B Features

* Glass Passivated Chip Junction
* Reverse Voltage - 100 to 1000 V
* Forward Current - 3.0 A
* Fast reverse recovery time

📥 Download Datasheet

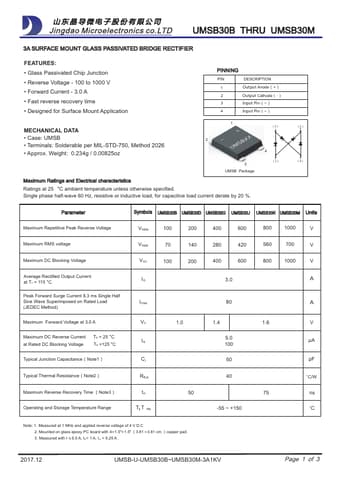

UMSB30B Datasheet Preview — Preview of UMSB30B PDF

Datasheet Details

Part number: UMSB30B
Manufacturer: Jingdao
File Size: 140.23 KB
Datasheet: UMSB30B-Jingdao.pdf
Description: 3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
