PC280LG-011 Datasheet - Johnson Motor

PC280LG-011 Low Voltage DC Motor

Ø 20.0 24.9 mm PC280LG-011 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Speed at Maximum Efficiency Life (typical) Weight Operation Temperature Storage Temperature Electrical Connection : Ø 24.4 X 30.8 mm : Ø 2.000 mm : 12.0 V DC : 8200 rpm : 0.65 A : 25.50 mNm : 2.10 A : 5.50 W : 62 % : 7000 rpm : 50 hr : 52 g : -10 to 55 °C : -20 to 80 °C.

PC280LG-011-JohnsonMotor.pdf

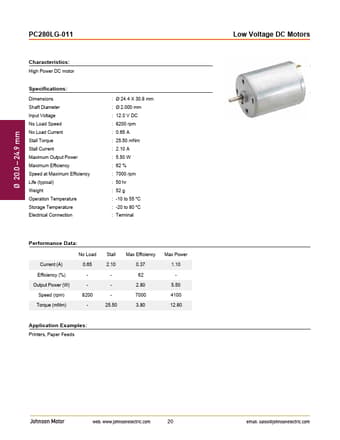

Preview of PC280LG-011 PDF
PC280LG-011 Datasheet Preview Page 2

Datasheet Details

Part number:

PC280LG-011

Manufacturer:

Johnson Motor

File Size:

125.95 KB

Description:

Low voltage dc motor.
