JW1765

Offline Step-down LED Controller

JW1765 Features

* No auxiliary winding High current accuracy of line and load re

JW1765 General Description

The JW®1765 is a constant current LED controller with high current accuracy which applies to single stage step-down power factor corrected LED drivers. High accuracy of output current is achieved by sampling the output current directly. Critical conduction mode operation reduces the switching losses.

JW1765 Datasheet (627.54 KB)

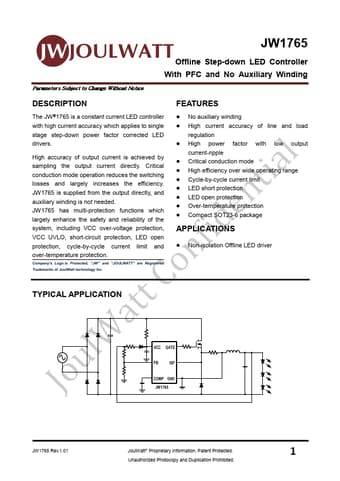

Preview of JW1765 PDF

Datasheet Details

Part number:

JW1765

Manufacturer:

JoulWatt

File Size:

627.54 KB

Description:

Offline step-down led controller.
