JW5116F Datasheet - JoulWatt

40V Asynchronous Step-Down Converter

JW5116F Features

* 4.7V to 40V operating input range 3A output current

* Up to 92% efficiency

* High efficiency (>78%) at light load

* Internal soft-start

* Adjustable switch frequency

* Input under-voltage lockout

* Start-up current run-away protection

* Output short protection

JW5116F General Description

The JW®5116F is a current mode monolithic buck switching regulator. Operating with an input range of 4.7-40V, the JW5116F delivers 3A of continuous output current with an integrated high side N-Channel MOSFET. At light loads, JW5116F operates in low frequency to maintain high efficiency and low outp.

JW5116F Datasheet (911.74 KB)

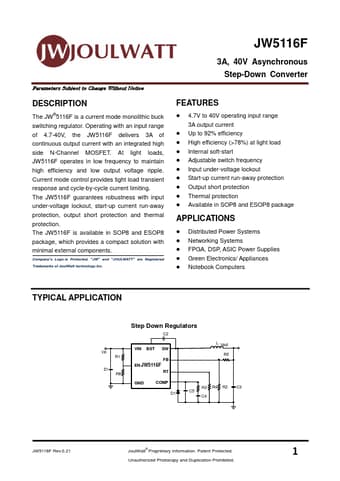

JW5116F Datasheet Preview — Preview of JW5116F PDF

Datasheet Details

Part number:

JW5116F

Manufacturer:

JoulWatt

File Size:

911.74 KB

Description:

40v asynchronous step-down converter.
