JW7707D

Synchronous Rectifier

JW7707D Features

* Supports DCM and Quasi-Resonant Flyback converter Integrated 10mΩ 60V Power MOSFET Supports High-side and Low-side Rectification No need external power supply APPLICATIONS Flyback converters Adaptors TYPICAL APPLICATION Note 1: RVCC is recommended in case IC is damaged in CCM. Note 2: DVCC is reco

JW7707D General Description

JW7707D is a synchronous rectifier for Flyback converters. It integrates a 60V power MOSFET that can replace Schottky diode for high efficiency. It turns on the internal MOSFET if the VSW<-500mV and turns it off before the current from GND to SW is lower than zero. Company’s Logo is Protected, “JW” .

JW7707D Datasheet (325.58 KB)

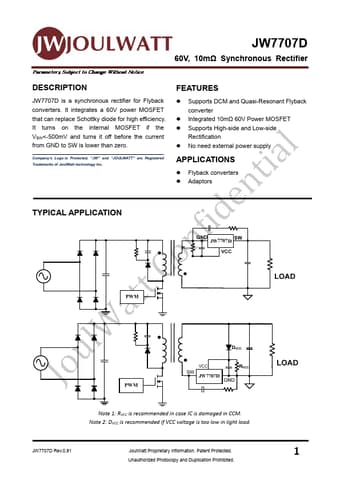

Preview of JW7707D PDF

Datasheet Details

Part number:

JW7707D

Manufacturer:

JoulWatt

File Size:

325.58 KB

Description:

Synchronous rectifier.
