JWB1992B-C117, JWB1992N-C117 - Non-isolated Buck LED Driver Regulator

JWB1992B-C117 Description

JWB1992S/N/M/A/B-C117 Parameters Subject to Change Without Notice Non-isolated Buck LED Driver Regulator .
JW®B1992S-C117/JWB1992N-C117/JWB1992M- C117/JWB1992A-C117/JWB1992B-C117(JWB19 92X-C117 series) is a non-isolated constant current LED regulator wi.

JWB1992B-C117 Features

* 800V bridge rectifier integrated
* 600V low VF diode integrated
* 500V MOSFET integrated
* Excellent line/load regulation
* Boundary mode operation
* High efficiency
* LED short protection
* Over-temperature protection

JWB1992B-C117 Applications

* LED lighting TYPICAL APPLICATION AC IN ACIN1 ACIN2 VI N DRAIN GND NC CS JWB1992X-C117 series JWB1992X-C117 series Rev.0.22 JoulWatt® Proprietary Information. Patent Protected. 1 Unauthorized Photocopy and Duplication Prohibited. JWB1992X-C117 series ORDER INFORMATION DEVICE1) JWB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: JWB1992B-C117, JWB1992N-C117. Please refer to the document for exact specifications by model.

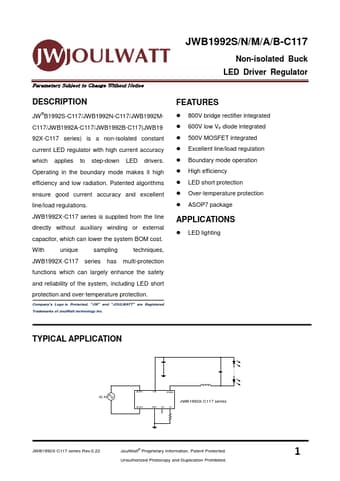

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JWB1992B-C117, JWB1992N-C117
Manufacturer
JoulWatt
File Size
568.78 KB
Datasheet
JWB1992N-C117-JoulWatt.pdf
Description
Non-isolated Buck LED Driver Regulator
Note
This datasheet PDF includes multiple part numbers: JWB1992B-C117, JWB1992N-C117.
Please refer to the document for exact specifications by model.
