| Part number | KY-011 |
|---|---|
| Manufacturer | Joy-IT |
| File Size | 568.12 KB |
| Description | 2-Color (Red+Green) 5mm LED module |
| Datasheet |
 KY-011 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: KY-011, KY-011-Joy. Please refer to the document for exact specifications by model. |
|
|

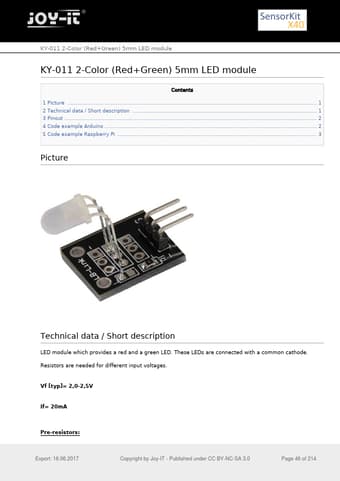

1 3 Pinout 2 4 Code example Arduino 2 5 Code example Raspberry Pi 3 Picture Technical data / Short description LED module which provides a red and a green LED.These LEDs are connected with a common cathode.Resistors are needed for different input voltages. Vf [typ]= 2,0-2,5V If= 20mA Pre-resistors: Export: 16.06.2017 Copyright by Joy-IT - Published under CC BY-NC-SA 3.0 Page 46 of 214 KY-011 2-Color (Red+Green) 5mm LED module Rf (3,3V) [Green]= 120Ω Rf (3,3V) [Red]= 120Ω [for examp
