K24C08C

Two-wire Serial EEPROM

K24C08C Features

* ?Wide Voltage Operation - VCC = 1.8V to 5.5V ?Operating Ambient Temperature: -40

* C to +85

* C ?Internally Organized: - K24C02C, 256 X 8 (2K bits) - K24C04, 512 X 8 (4K bits) - K24C08C, 1024 X 8 (8K bits) - K24C16B, 2048 X 8 (16K bits) ?Two-wire Serial Interface ?Schmitt Trigger, Filt

K24C08C General Description

The K24C02C/K24C04/K24C08C/K24C16B provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low.

K24C08C Datasheet (1.27 MB)

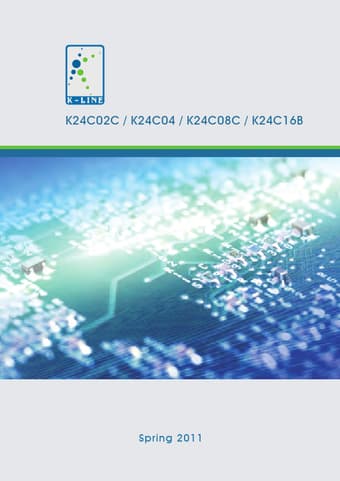

Preview of K24C08C PDF

Datasheet Details

Part number:

K24C08C

Manufacturer:

K-Line

File Size:

1.27 MB

Description:

Two-wire serial eeprom.
K24C02C / K24C04 / K24C08C / K24C16B Spring 2011 K24C02C/K24C04/K24C08C/K24C16B 2K bits (256 X 8) / 4K bits (512 X 8) / 8K bits (1024 X 8) / 16K bit.
