KT1151, KT1151-K Datasheet - K-Line

KT1151 Microwave Low Noise SiGe Heterojunction Bipolar Transistor

The KT1151 is a SiGe NPN HBT (Heterojunction bipolar transistor) designed for low noise high gain amplifier at CATV, UHF and VHF band. It has advantages such as low noise figure, high power gain, high voltage, broad dynamic range and good linearity. It can be applied in low noise high gain amplifier.

KT1151 Features

* h Operation Voltage: 10 V h Operating Temperature:

* 55℃ to +85℃ h Low Noise figure and High Gain NF=1.0dB (Typ), Ga=12dB (Typ) @VCE=10V,IC=7mA,f=1GHz h High Power Gain Gmax=14dB (Typ) @VCE=10V,IC=20mA,f=1GHz h Cost Effective 3-lead SOT23, 3-lead SOT323, 4- lead SOT143 package types Applica

KT1151-K-LINE.pdf

This datasheet PDF includes multiple part numbers: KT1151, KT1151-K. Please refer to the document for exact specifications by model.

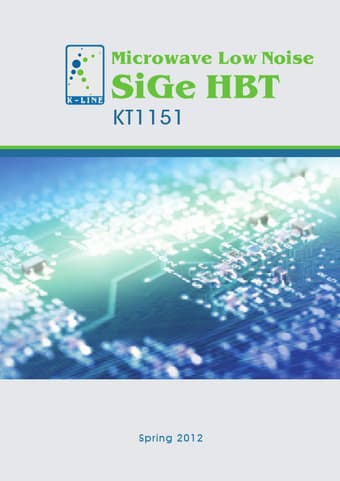

KT1151 Datasheet Preview Page 2 KT1151 Datasheet Preview Page 3

Datasheet Details

Part number:

KT1151, KT1151-K

Manufacturer:

K-Line

File Size:

500.56 KB

Description:

Microwave low noise sige heterojunction bipolar transistor.

Note:

This datasheet PDF includes multiple part numbers: KT1151, KT1151-K.
Please refer to the document for exact specifications by model.
