KS105-53 Datasheet - KCB

KS105-53 SP4T 20W Switch

The KS105-53 is a common cathode SP4T PIN switch that offers high power handling and low insertion loss in a compact surface mount package. Built on a highly thermally conductive Aluminum Nitride (AlN) substrate, this switch is ideal for high performance commercial and military applications where low loss combined with moderate adjacent port isolation is required. In addition, the thick copper under metal provides superior loss performance as well as higher bias current handling than traditional.

KS105-53 Datasheet (850.16 KB)

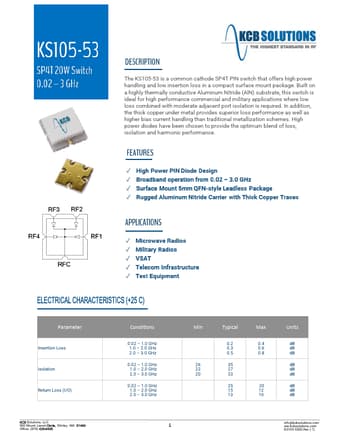

Preview of KS105-53 PDF

Datasheet Details

Part number:

KS105-53

Manufacturer:

KCB

File Size:

850.16 KB

Description:

Sp4t 20w switch.
