BTA100-1000

4 Quadrants TRIACs

BTA100-1000 Features

* BTA100 series are insulated design Blocking voltage to 800/1000/12000/1600V On-state RMS current to 100A Non-repetitive peak on-state current to 1000A

* Absolute Maximum Ratings 4 Quadrants TRIACs BTA100 Series Symbol Parameter Conditions Min Max Unit VDRM VRRM IT(RMS) Repetitive peak o

BTA100-1000 General Description

High current density due to double mesa trchnology; BTA100 Series triacs is suitable for general purpose AC switching.
* Applications: they can be used as an ON/OFF function in applications such as static relays,heating regulation,induction motor stating circuits or for phase contol operation l.

BTA100-1000 Datasheet (254.68 KB)

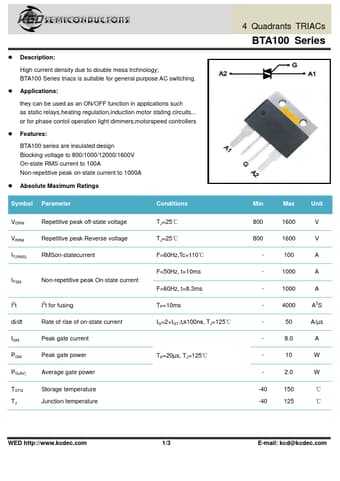

Preview of BTA100-1000 PDF

Datasheet Details

Part number:

BTA100-1000

Manufacturer:

KCD

File Size:

254.68 KB

Description:

4 quadrants triacs.
