MAC97A8 Datasheet 0.8A Logic level TRIAC

Manufacturer: KCD

Download the MAC97A8 datasheet PDF. This datasheet also includes the MAC97A6 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

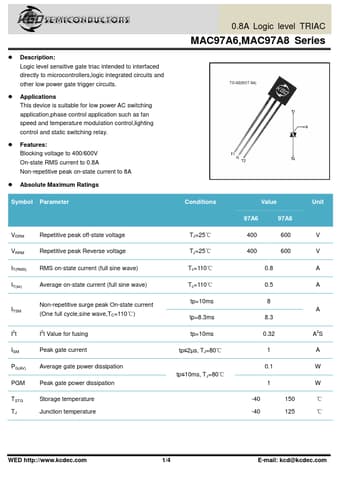

MAC97A8 0.8a logic level triac by KCD - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MAC97A6-KCD.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MAC97A8
Manufacturer	KCD
File Size	287.56 KB
Description	0.8A Logic level TRIAC
Download	MAC97A8 Download (PDF)

General Description

: Logic level sensitive gate triac intended to interfaced directly to microcontrollers,logic integrated circuits and other low power gate trigger circuits.

 Applications This device is suitable for low power AC switching application,phase control application such as fan speed and temperature modulation control,lighting control and static switching relay.



Overview

.

Key Features

s: Blocking voltage to 400/600V On-state RMS current to 0.8A Non-repetitive peak on-state current to 8A.
Absolute Maximum Ratings 0.8A Logic level TRIAC MAC97A6,MAC97A8 Series Symbol Parameter Conditions Value Unit VDRM VRRM IT(RMS) IT(av) Repetitive peak off-state voltage Repetitive peak Reverse voltage RMS on-state current (full sine wave) Average on-state current (full sine wave) Non-repetitive surge peak On-state current ITSM (One full cycle,sine wave,TC=110℃) I2t I2t Value for.
