PCR606J

Sensitive Gate Silicon Controlled Rectifiers

PCR606J Features

* www.DataSheet4U.com ▼ 1 23 ○ ○ 3. Anode 1. Cathode Repetitive Peak Off-State Voltage : 600V

* R.M.S On-State Current ( IT(RMS)= 0.6 A )

* Low On-State Voltage (1.2V(Typ.)@ ITM)

* TO-92 General Description Sensitive triggering SCR is suitable for the application where gate current

PCR606J General Description

Sensitive triggering SCR is suitable for the application where gate current limited such as small motor control, gate driver for large SCR, sensing and detecting circuits. Absolute Maximum Ratings Symbol VDRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IFGM VRGM TJ TSTG ( TJ = 25°C unless otherwise specifi.

PCR606J Datasheet (549.17 KB)

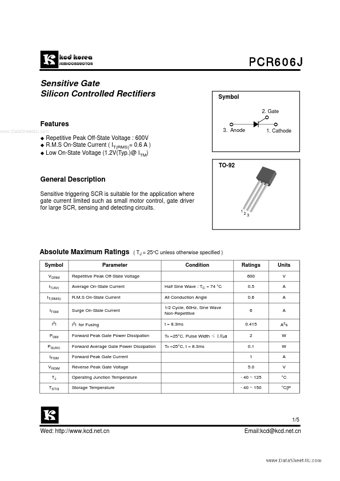

Preview of PCR606J PDF

Datasheet Details

Part number:

PCR606J

Manufacturer:

KCD

File Size:

549.17 KB

Description:

Sensitive gate silicon controlled rectifiers.
