KC9806P, KC9806E Digital Servo Motor Controller

📥 Download Datasheet  Datasheet Preview Page 1

Description

KC9806E/S/P Digital Servo Motor Controller Preliminary Rev.0.02 Feb.21.2011 .
KC9806X is a Application Specific Integrated Circuit with wide voltage scope and simple peripheral circuit used in digital servo control.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KC9806P, KC9806E. Please refer to the document for exact specifications by model.

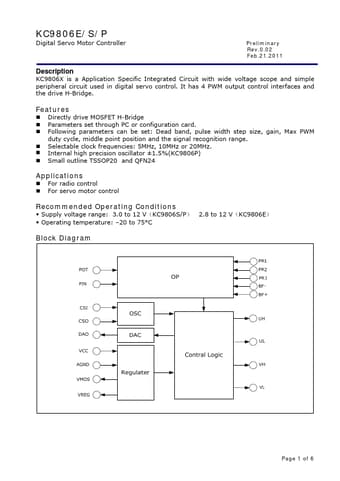

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
KC9806P, KC9806E
Manufacturer
KCS
File Size
179.64 KB
Datasheet
KC9806E-KCS.pdf
Description
Digital Servo Motor Controller
Note
This datasheet PDF includes multiple part numbers: KC9806P, KC9806E.
Please refer to the document for exact specifications by model.

Features

* Directly drive MOSFET H-Bridge
* Parameters set through PC or configuration card.
* Following parameters can be set: Dead band, pulse width step size, gain, Max PWM duty cycle, middle point position and the signal recognition range.
* Selectable clock frequencies: 5MHz, 10MHz or 20

Applications

* For radio control
* For servo motor control Recommended Operating Conditions
* Supply voltage range: 3.0 to 12 V(KC9806S/P) 2.8 to 12 V(KC9806E)
* Operating temperature:
