ABS10 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER

This page provides the datasheet information for the ABS10, a member of the ABS1 MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER family.

Features

  • Ideal for printed circuit board.
  • Reliable low cost construction technique results in inexpensive product.
  • High temperature soldering guaranteed : 260°C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension.

📥 Download Datasheet

Datasheet preview – ABS10

Datasheet Details

Part number ABS10
Manufacturer KD
File Size 654.41 KB
Description MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
Datasheet download datasheet ABS10 Datasheet
Additional preview pages of the ABS10 datasheet.

📁 Similar Datasheet

  • ABS10 - SINGLE-PHASE BRIDGE RECTIFIER (Sunmate)
  • ABS10 - Surface Mount Glass Passivated Bridge Rectifier (BLUE ROCKET ELECTRONICS)
  • ABS10 - 1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER (WON-TOP)
  • ABS10 - SURFACE MOUNT FAST SWITCHING RECTIFIER (Suntan)
  • ABS10 - Standard Bridge Rectifier (TSC)
  • ABS10 - SMD LOW PROFILE CRYSTAL (Abracon Corporation)
  • ABS10 - SMD Single Phase Bridge Rectifier (Diotec)
  • ABS10 - SINGLE-PHASE BRIDGE RECTIFIER (Mospec)
  • ABS10 - SINGLE PHASE 0.8AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER (SMC Diode)
  • ABS10 - Bridge Rectifiers (Yangzhou Yangjie)
Other Datasheets by KD
  • ABS1 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS2 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS205 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS21 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS210 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS22 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS24 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
  • ABS26 - MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

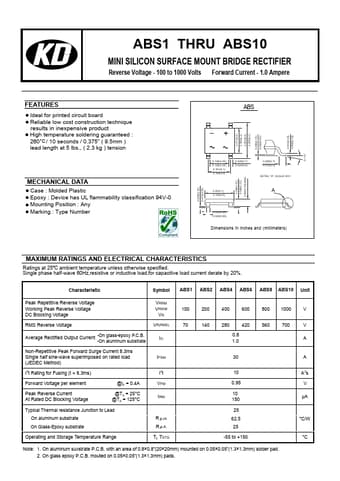

ABS1 THRU ABS10 MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER Reverse Voltage - 100 to 1000 Volts Forward Current - 1.0 Ampere 0.010(0.25) 0.006(0.15) 0~10O FEATURES ● Ideal for printed circuit board ● Reliable low cost construction technique results in inexpensive product ● High temperature soldering guaranteed : 260°C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension MECHANICAL DATA ● Case : Molded Plastic ● Epoxy : Device has UL flammability classification 94V-0 ● Mounting Position : Any ● Marking : Type Number 0.006(0.15) 0.002(0.05) ABS 0.177(4.5) 0.169(4.3) 0.252(6.4) 0.236(6.0) 0.006(0.15) 0.002(0.05) 0.056(1.42) 0.048(1.22) 0.059(1.50) MAX. 0.136(3.45) 0.128(3.25) 0.161(4.1) 0.154(3.9) 0.028(0.7) 0.024(0.6) 0.20(5.1) 0.193(4.9) 0.028(0.7) 0.012(0.
