DF02, DF005 GLASS PASSIVATED BRIDGE RECTIFIERS

DF02 Description

DF005 THRU DF10 GLASS PASSIVATED BRIDGE RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere .

DF02 Features

* Plastic package used has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated chip junction
* High surge overload rating of 50 Amperes peak
* High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension MECHANICAL DATA
* Case: Molde

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF02, DF005. Please refer to the document for exact specifications by model.

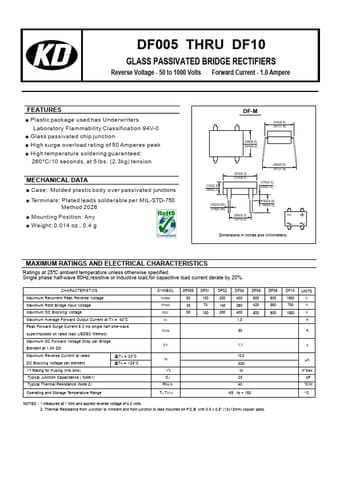

datasheet Preview Page 2

Datasheet Details

Part number
DF02, DF005
Manufacturer
KD
File Size
774.23 KB
Datasheet
DF005-KD.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: DF02, DF005.
Please refer to the document for exact specifications by model.
