DF1502, DF15005, GLASS PASSIVATED BRIDGE RECTIFIERS

DF15005 THRU DF1510 GLASS PASSIVATED BRIDGE RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.5 Ampere .

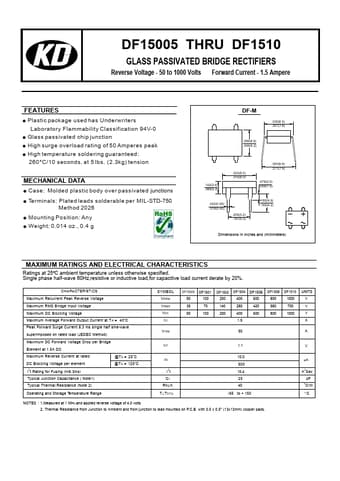

datasheet Preview Page 1 from Datasheet4u.com

DF15005-KD.pdf

DF1502 Datasheet Preview — This datasheet PDF includes multiple part numbers: DF1502, DF15005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DF1502, DF15005

Manufacturer:

File Size:

873.21 KB

Description:

GLASS PASSIVATED BRIDGE RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: DF1502, DF15005.
Please refer to the document for exact specifications by model.

Features

* Plastic package used has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated chip junction
* High surge overload rating of 50 Amperes peak
* High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension MECHANICAL DATA
* Case: Molde
