FS11PL - SURFACE MOUNT FAST RECOVERY RECTIFIER

FS11PL Description

FS11PL THRU FS17PL SURFACE MOUNT FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere .

FS11PL Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

FS11PL Applications

* Fast switching for high efficiency
* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals 1.9 0.1 SOD-123FL Cathode Band Top View 2.8 0.1 1.0

📥 Download Datasheet

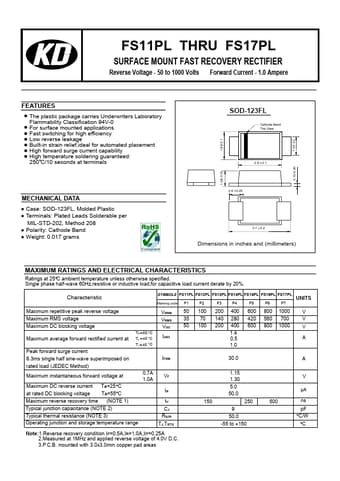

Preview of FS11PL PDF
datasheet Preview Page 2

Datasheet Details

Part number
FS11PL
Manufacturer
KD
File Size
430.87 KB
Datasheet
FS11PL-KD.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER
